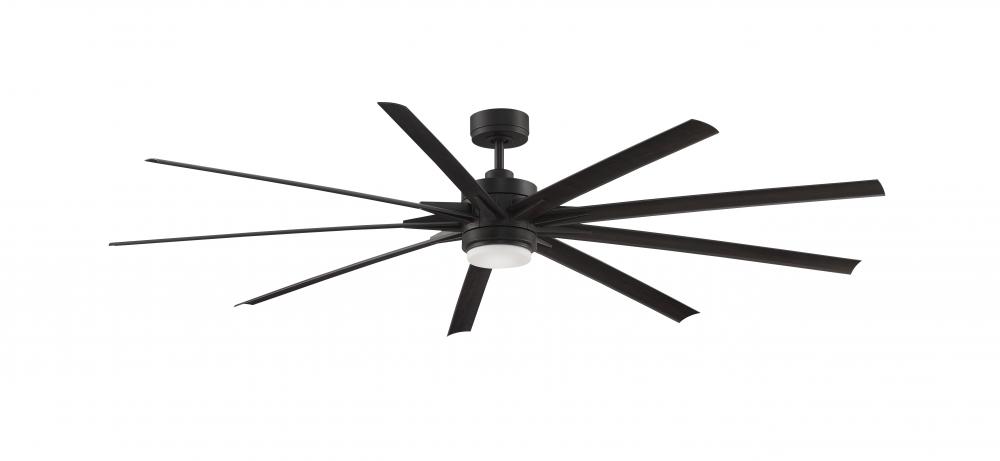

The Odyn, by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control, integrated LED with CCT Select Temperature settings, and a cap for use without the light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use

Vendor Item #:

FPD8159DZW

Internal #:

G9LE

Category:

Exterior , Fans

Subcategory:

Exterior Fans , Outdoor Fans

Finish:

Bronze

Style:

Traditional

Option:

Energy Star , Wet Rated , LED

Voltage:

10-99

Glass Finish or Style:

Frosted , Opal

Lumens:

1101-1600

Number of Blades:

8+ Blades

Subfinish:

Dark Bronze

Location Rating:

Wet Rated

Wattage:

18w

Category:

Fan-Uni

Finish:

Dark Bronze

Option:

Wet

Family:

Odyn 84

Glass:

Opal Frosted

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Additional Info:

10,236 CFM on High , Compatible with most Smart home devices (required controls sold separately) , DC motor with reverse switch, variable fan speeds, light control, sleep timer, home away, fresh air , ENERGY STAR Most Efficient 2020 , Set of (9) 84 inch Wet Rated blades and 18 watt LED light kit with cover and bulb included , TR205 handheld remote with CR2032 batteries included

Air Flow CFM:

11293

Air Flow Efficiency:

325

Amperage:

0.45

Blade Finish:

Dark Walnut

Blade Pitch:

Blade Span:

Bulb Type:

18 Watt LED Module

Canopy:

6.46 Dia x 2.58 H

Diameter:

8.27

Down Rod Included:

Electricity Used:

Harmonized Codes:

8414.51.3000

Kelvin:

3000

Length:

Light Kit Included:

Yes

Lumens / Light Output:

1500

Material:

Composite

Motor Fan Speed:

Motor RPM:

Motor Size:

DC165NL

Motor Type:

Remote Control Included:

TR205D

Ship Carton Height:

12.87

Ship Carton Length:

40.08

Ship Carton Width:

10.47

Ship Weight:

38.5

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

34.73

Airflow Efficiency Low:

1181

Airflow Efficiency Medium:

627

Avg Airflow Efficiency:

399

Avg CFM Energy:

9916

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Finish Method:

Painted

Blade Material:

Composite

Blade Reversible:

Blade Sweep:

Bulb Base:

Connector Pin

Bulb CRI:

Bulb Wattage:

Canopy Diameter:

6.46 Dia

Canopy Height:

2.58 H

Cap Included:

Yes

Carton Cubic Feet:

3.13

Cartons Per Unit:

Case Height:

12.87

Case Length:

40.08

Case Quantity:

Case Weight Pounds:

38.5

Case Width:

10.47

CEC Uploaded:

Yes

Ceiling To Blade Edge:

18.2

Ceiling To Bottom:

22.33 , 22.64

CFM Low:

4630

CFM Medium:

8460

Compatible Accessories:

CCK8002DZW, DR1-CPDZ, DR1SS-12DZW, DR1SS-18DZW, DR1SS-24DZW, DR1SS-36DZW, DR1SS-48DZW, DR1SS-60DZW, DR1SS-72DZW, SCB1-52

Compatible Wall Controls:

TW306

Country of Origin:

China

CRI:

Current Draw High:

0.46

Current Draw Low:

0.07

Current Draw Medium:

0.2

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

DOEFTC Uploaded:

Yes

Downrod Length:

Exempt from DOE Procedure:

Fan Energy Star:

Yes

Housing Diameter:

8.27

Included Control:

TR305

Included Control Type:

Handheld

Leadwire:

Light Kit Energy Star:

Yes

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Control

RPM High (VI):

RPM Low (II):

RPM Medium (IV):

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 hz

Watts Low:

Watts Medium:

Watts Per Bulb:

Wet Rated:

Yes

Manufactured By:

Fanimation

Additional Information:

10,236 Cfm On High
Compatible With Most Smart Home Devices (required Controls Sold Separately)
Dc Motor With Reverse Switch, Variable Fan Speeds, Light Control, Sleep Timer, Home Away, Fresh Air
Energy Star Most Efficient 2022
Set Of (9) 84 Inch Wet Rated Blades And 18 Watt Led Cct Select Light Kit With Cover And Bulb Included
Tr305 Handheld Remote With 23a Battery Included
